@(Aaron) [机器学习, 机器翻译]

主要内容包括：

机器翻译
注意力机制和Seq2seq模型

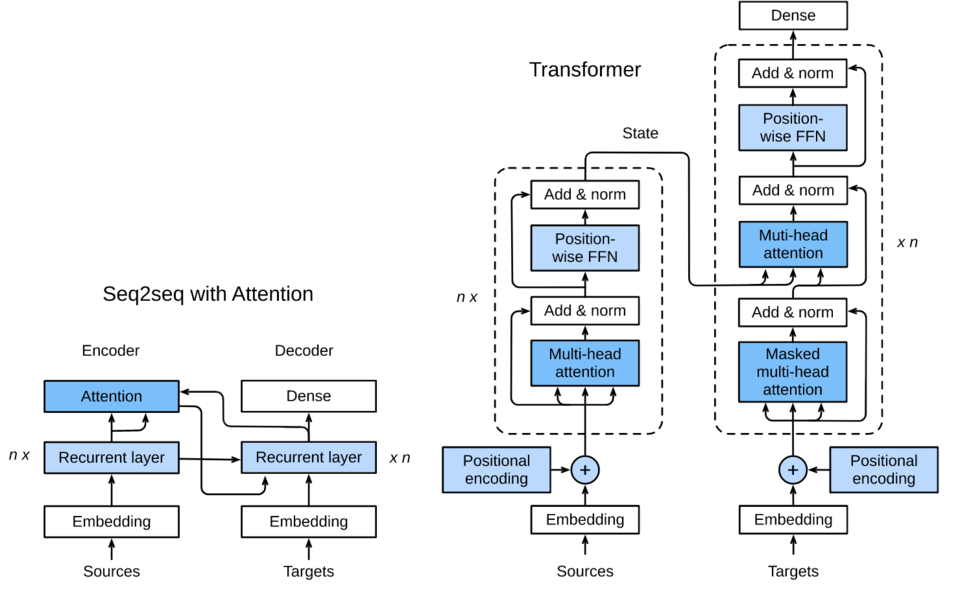

Transformer

[TOC]

机器翻译

机器翻译和数据集

机器翻译（MT）：将一段文本从一种语言自动翻译为另一种语言，用神经网络解决这个问题通常称为神经机器翻译（NMT）。主要特征：输出是单词序列而不是单个单词。输出序列的长度可能与源序列的长度不同。数据集是英语和法语对应的一段文本。


import os
os.listdir('/home/kesci/input/')
import sys
sys.path.append('/home/kesci/input/d2l9528/')
import collections
import d2l
import zipfile
from d2l.data.base import Vocab
import time
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils import data
from torch import optim

数据预处理

将数据集清洗、转化为神经网络的输入minbatch


with open('/home/kesci/input/fraeng6506/fra.txt', 'r') as f:
      raw_text = f.read()
print(raw_text[0:1000])

Go.	Va !	CC-BY 2.0 (France) Attribution: tatoeba.org #2877272 (CM) & #1158250 (Wittydev)
Hi.	Salut !	CC-BY 2.0 (France) Attribution: tatoeba.org #538123 (CM) & #509819 (Aiji)
Hi.	Salut.	CC-BY 2.0 (France) Attribution: tatoeba.org #538123 (CM) & #4320462 (gillux)
Run!	Cours !	CC-BY 2.0 (France) Attribution: tatoeba.org #906328 (papabear) & #906331 (sacredceltic)
Run!	Courez !	CC-BY 2.0 (France) Attribution: tatoeba.org #906328 (papabear) & #906332 (sacredceltic)
 Who?	Qui ?	CC-BY 2.0 (France) Attribution: tatoeba.org #2083030 (CK) & #4366796 (gillux)
Wow!	Ça alors !	CC-BY 2.0 (France) Attribution: tatoeba.org #52027 (Zifre) & #374631 (zmoo)
Fire!	Au feu !	CC-BY 2.0 (France) Attribution: tatoeba.org #1829639 (Spamster) & #4627939 (sacredceltic)
Help!	À l'aide !	CC-BY 2.0 (France) Attribution: tatoeba.org #435084 (lukaszpp) & #128430 (sysko)
Jump.	Saute.	CC-BY 2.0 (France) Attribution: tatoeba.org #631038 (Shishir) & #2416938 (Phoenix)
Stop!	Ça suffit !	CC-BY 2.0 (France) Attribution: tato


def preprocess_raw(text):
    text = text.replace('\u202f', ' ').replace('\xa0', ' ')
    out = ''
    for i, char in enumerate(text.lower()):
        if char in (',', '!', '.') and i > 0 and text[i-1] != ' ':
            out += ' '
        out += char
    return out

text = preprocess_raw(raw_text)
print(text[0:1000])

go .	va !	cc-by 2 .0 (france) attribution: tatoeba .org #2877272 (cm) & #1158250 (wittydev)
hi .	salut !	cc-by 2 .0 (france) attribution: tatoeba .org #538123 (cm) & #509819 (aiji)
hi .	salut .	cc-by 2 .0 (france) attribution: tatoeba .org #538123 (cm) & #4320462 (gillux)
run !	cours !	cc-by 2 .0 (france) attribution: tatoeba .org #906328 (papabear) & #906331 (sacredceltic)
run !	courez !	cc-by 2 .0 (france) attribution: tatoeba .org #906328 (papabear) & #906332 (sacredceltic)
who?	qui ?	cc-by 2 .0 (france) attribution: tatoeba .org #2083030 (ck) & #4366796 (gillux)
wow !	ça alors !	cc-by 2 .0 (france) attribution: tatoeba .org #52027 (zifre) & #374631 (zmoo)
fire !	au feu !	cc-by 2 .0 (france) attribution: tatoeba .org #1829639 (spamster) & #4627939 (sacredceltic)
help !	à l'aide !	cc-by 2 .0 (france) attribution: tatoeba .org #435084 (lukaszpp) & #128430 (sysko)
jump .	saute .	cc-by 2 .0 (france) attribution: tatoeba .org #631038 (shishir) & #2416938 (phoenix)
stop !	ça suffit !	cc-b

字符在计算机里是以编码的形式存在，我们通常所用的空格是 \x20 ，是在标准ASCII可见字符 0x20~0x7e 范围内。而 \xa0 属于 latin1 （ISO/IEC_8859-1）中的扩展字符集字符，代表不间断空白符nbsp(non-breaking space)，超出gbk编码范围，是需要去除的特殊字符。再数据预处理的过程中，我们首先需要对数据进行清洗。

分词

字符串---单词组成的列表


num_examples = 50000
source, target = [], []
for i, line in enumerate(text.split('\n')):
    if i > num_examples:
        break
    parts = line.split('\t')
    if len(parts) >= 2:
        source.append(parts[0].split(' '))
        target.append(parts[1].split(' '))

source[0:3], target[0:3]

d2l.set_figsize()
d2l.plt.hist([[len(l) for l in source], [len(l) for l in target]],label=['source', 'target'])
d2l.plt.legend(loc='upper right');

建立词典

单词组成的列表---单词id组成的列表


def build_vocab(tokens):
    tokens = [token for line in tokens for token in line]
    return d2l.data.base.Vocab(tokens, min_freq=3, use_special_tokens=True)

src_vocab = build_vocab(source)
len(src_vocab)

载入数据集


def pad(line, max_len, padding_token):
    if len(line) > max_len:
        return line[:max_len]
    return line + [padding_token] * (max_len - len(line))
pad(src_vocab[source[0]], 10, src_vocab.pad)


def build_array(lines, vocab, max_len, is_source):
    lines = [vocab[line] for line in lines]
    if not is_source:
        lines = [[vocab.bos] + line + [vocab.eos] for line in lines]
    array = torch.tensor([pad(line, max_len, vocab.pad) for line in lines])
    valid_len = (array != vocab.pad).sum(1) #第一个维度
    return array, valid_len

def load_data_nmt(batch_size, max_len): # This function is saved in d2l.
    src_vocab, tgt_vocab = build_vocab(source), build_vocab(target)
    src_array, src_valid_len = build_array(source, src_vocab, max_len, True)
    tgt_array, tgt_valid_len = build_array(target, tgt_vocab, max_len, False)
    train_data = data.TensorDataset(src_array, src_valid_len, tgt_array, tgt_valid_len)
    train_iter = data.DataLoader(train_data, batch_size, shuffle=True)
    return src_vocab, tgt_vocab, train_iter
src_vocab, tgt_vocab, train_iter = load_data_nmt(batch_size=2, max_len=8)
for X, X_valid_len, Y, Y_valid_len, in train_iter:
    print('X =', X.type(torch.int32), '\nValid lengths for X =', X_valid_len,
        '\nY =', Y.type(torch.int32), '\nValid lengths for Y =', Y_valid_len)
    break

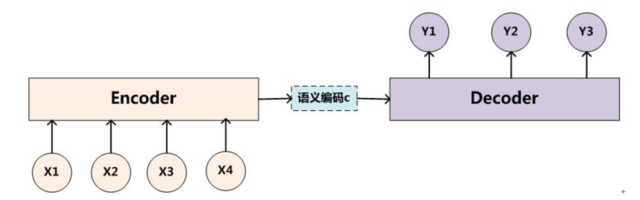

Encoder-Decoder

Encoder-Decoder解决了输入和输出序列长度不等的问题。
encoder：输入到隐藏状态
decoder：隐藏状态到输出


class Encoder(nn.Module):
    def __init__(self, **kwargs):
        super(Encoder, self).__init__(**kwargs)

    def forward(self, X, *args):
        raise NotImplementedError
class Decoder(nn.Module):
    def __init__(self, **kwargs):
        super(Decoder, self).__init__(**kwargs)

    def init_state(self, enc_outputs, *args):
        raise NotImplementedError

    def forward(self, X, state):
        raise NotImplementedError
class EncoderDecoder(nn.Module):
    def __init__(self, encoder, decoder, **kwargs):
        super(EncoderDecoder, self).__init__(**kwargs)
        self.encoder = encoder
        self.decoder = decoder

    def forward(self, enc_X, dec_X, *args):
        enc_outputs = self.encoder(enc_X, *args)
        dec_state = self.decoder.init_state(enc_outputs, *args)
        return self.decoder(dec_X, dec_state)

可以应用在对话系统、生成式任务中。

Sequence to Sequence模型

模型：

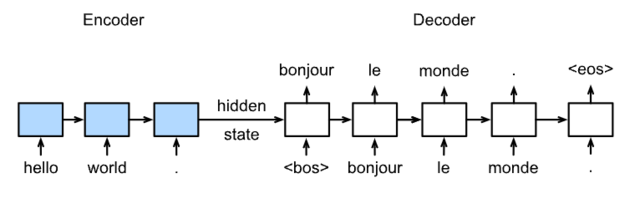

训练

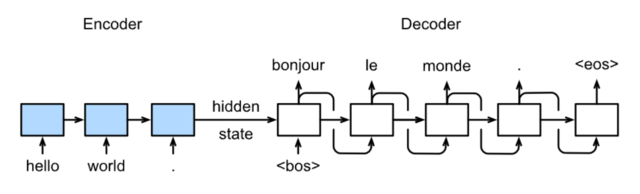

预测

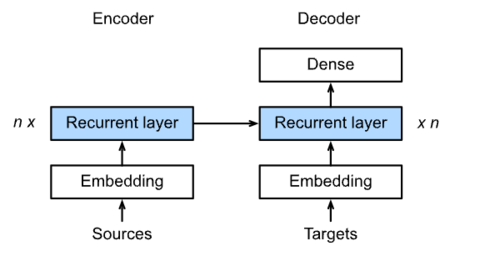

具体结构：

Encoder


class Seq2SeqEncoder(d2l.Encoder):
    def __init__(self, vocab_size, embed_size, num_hiddens, num_layers,
                 dropout=0, **kwargs):
        super(Seq2SeqEncoder, self).__init__(**kwargs)
        self.num_hiddens=num_hiddens
        self.num_layers=num_layers
        self.embedding = nn.Embedding(vocab_size, embed_size)
        self.rnn = nn.LSTM(embed_size,num_hiddens, num_layers, dropout=dropout)

    def begin_state(self, batch_size, device):
        return [torch.zeros(size=(self.num_layers, batch_size, self.num_hiddens),  device=device),
                torch.zeros(size=(self.num_layers, batch_size, self.num_hiddens),  device=device)]
    def forward(self, X, *args):
        X = self.embedding(X) # X shape: (batch_size, seq_len, embed_size)
        X = X.transpose(0, 1)  # RNN needs first axes to be time
        # state = self.begin_state(X.shape[1], device=X.device)
        out, state = self.rnn(X)
        # The shape of out is (seq_len, batch_size, num_hiddens).
        # state contains the hidden state and the memory cell
        # of the last time step, the shape is (num_layers, batch_size, num_hiddens)
        return out, state
encoder = Seq2SeqEncoder(vocab_size=10, embed_size=8,num_hiddens=16, num_layers=2)
X = torch.zeros((4, 7),dtype=torch.long)
output, state = encoder(X)
output.shape, len(state), state[0].shape, state[1].shape

Decoder


class Seq2SeqDecoder(d2l.Decoder):
    def __init__(self, vocab_size, embed_size, num_hiddens, num_layers,
                 dropout=0, **kwargs):
        super(Seq2SeqDecoder, self).__init__(**kwargs)
        self.embedding = nn.Embedding(vocab_size, embed_size)
        self.rnn = nn.LSTM(embed_size,num_hiddens, num_layers, dropout=dropout)
        self.dense = nn.Linear(num_hiddens,vocab_size)

    def init_state(self, enc_outputs, *args):
        return enc_outputs[1]

    def forward(self, X, state):
        X = self.embedding(X).transpose(0, 1)
        out, state = self.rnn(X, state)
        # Make the batch to be the first dimension to simplify loss computation.
        out = self.dense(out).transpose(0, 1)
        return out, state
decoder = Seq2SeqDecoder(vocab_size=10, embed_size=8,num_hiddens=16, num_layers=2)
state = decoder.init_state(encoder(X))
out, state = decoder(X, state)
out.shape, len(state), state[0].shape, state[1].shape

损失函数

#屏蔽pading的无效字符
def SequenceMask(X, X_len,value=0):
    maxlen = X.size(1)
    mask = torch.arange(maxlen)[None, :].to(X_len.device) < X_len[:, None]
    X[~mask]=value
    return X
X = torch.tensor([[1,2,3], [4,5,6]])
SequenceMask(X,torch.tensor([1,2]))

tensor([[1, 0, 0],
           [4, 5, 0]])

#使用的仍是交叉熵损失
class MaskedSoftmaxCELoss(nn.CrossEntropyLoss):
	# pred shape: (batch_size, seq_len, vocab_size)
	# label shape: (batch_size, seq_len)
	# valid_length shape: (batch_size, )
	def forward(self, pred, label, valid_length):
			# the sample weights shape should be (batch_size, seq_len)
			weights = torch.ones_like(label)
			weights = SequenceMask(weights, valid_length).float()
			self.reduction='none'
			output=super(MaskedSoftmaxCELoss, self).forward(pred.transpose(1,2), label)
			return (output*weights).mean(dim=1)
loss = MaskedSoftmaxCELoss()
loss(torch.ones((3, 4, 10)), torch.ones((3,4),dtype=torch.long), torch.tensor([4,3,0]))

 tensor([2.3026, 1.7269, 0.0000])

训练


def train_ch7(model, data_iter, lr, num_epochs, device):  # Saved in d2l
    model.to(device)
    optimizer = optim.Adam(model.parameters(), lr=lr)
    loss = MaskedSoftmaxCELoss()
    tic = time.time()
    for epoch in range(1, num_epochs+1):
        l_sum, num_tokens_sum = 0.0, 0.0
        for batch in data_iter:
            optimizer.zero_grad()
            X, X_vlen, Y, Y_vlen = [x.to(device) for x in batch]
            Y_input, Y_label, Y_vlen = Y[:,:-1], Y[:,1:], Y_vlen-1

            Y_hat, _ = model(X, Y_input, X_vlen, Y_vlen)
            l = loss(Y_hat, Y_label, Y_vlen).sum()
            l.backward()

            with torch.no_grad():
                d2l.grad_clipping_nn(model, 5, device)
            num_tokens = Y_vlen.sum().item()
            optimizer.step()
            l_sum += l.sum().item()
            num_tokens_sum += num_tokens
        if epoch % 50 == 0:
            print("epoch {0:4d},loss {1:.3f}, time {2:.1f} sec".format(
                  epoch, (l_sum/num_tokens_sum), time.time()-tic))
            tic = time.time()
embed_size, num_hiddens, num_layers, dropout = 32, 32, 2, 0.0
batch_size, num_examples, max_len = 64, 1e3, 10
lr, num_epochs, ctx = 0.005, 300, d2l.try_gpu()
src_vocab, tgt_vocab, train_iter = d2l.load_data_nmt(
    batch_size, max_len,num_examples)
encoder = Seq2SeqEncoder(
    len(src_vocab), embed_size, num_hiddens, num_layers, dropout)
decoder = Seq2SeqDecoder(
    len(tgt_vocab), embed_size, num_hiddens, num_layers, dropout)
model = d2l.EncoderDecoder(encoder, decoder)
train_ch7(model, train_iter, lr, num_epochs, ctx)

测试


def translate_ch7(model, src_sentence, src_vocab, tgt_vocab, max_len, device):
    src_tokens = src_vocab[src_sentence.lower().split(' ')]
    src_len = len(src_tokens)
    if src_len < max_len:
        src_tokens += [src_vocab.pad] * (max_len - src_len)
    enc_X = torch.tensor(src_tokens, device=device)
    enc_valid_length = torch.tensor([src_len], device=device)
    # use expand_dim to add the batch_size dimension.
    enc_outputs = model.encoder(enc_X.unsqueeze(dim=0), enc_valid_length)
    dec_state = model.decoder.init_state(enc_outputs, enc_valid_length)
    dec_X = torch.tensor([tgt_vocab.bos], device=device).unsqueeze(dim=0)
    predict_tokens = []
    for _ in range(max_len):
        Y, dec_state = model.decoder(dec_X, dec_state)
        # The token with highest score is used as the next time step input.
        dec_X = Y.argmax(dim=2)
        py = dec_X.squeeze(dim=0).int().item()
        if py == tgt_vocab.eos:
            break
        predict_tokens.append(py)
    return ' '.join(tgt_vocab.to_tokens(predict_tokens))
for sentence in ['Go .', 'Wow !', "I'm OK .", 'I won !']:
    print(sentence + ' => ' + translate_ch7(
        model, sentence, src_vocab, tgt_vocab, max_len, ctx))

Go . => va !
Wow ! => <unk> !
I'm OK . => ça va .
I won ! => j'ai gagné !

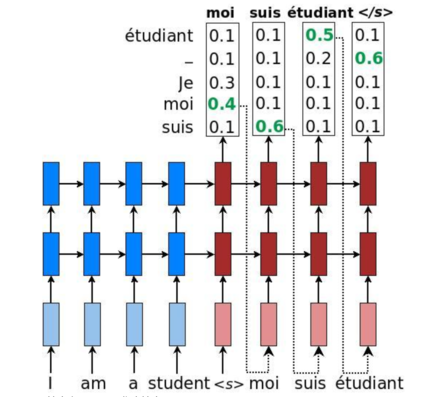

Viterbi algorithm

维特比算法 (Viterbi algorithm) 是机器学习中应用非常广泛的动态规划算法，在求解隐马尔科夫、条件随机场的预测以及seq2seq模型概率计算等问题中均用到了该算法。即用动态规划求解最优路径。但其同样存在弊端，如果字典的长度非常大的话，那么查找的状态将会非常多，影响效率。而在句子生成中还有些如下方法：

简单greedy search：

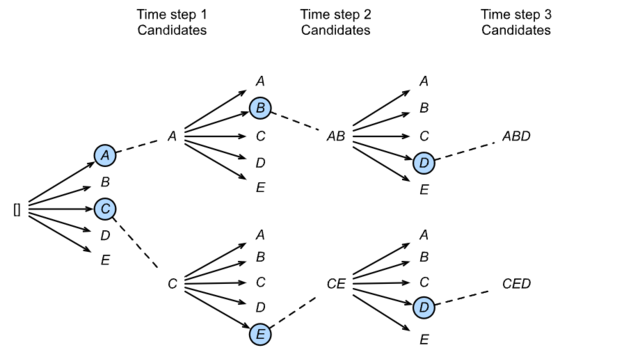

集束搜索（Beam Search）

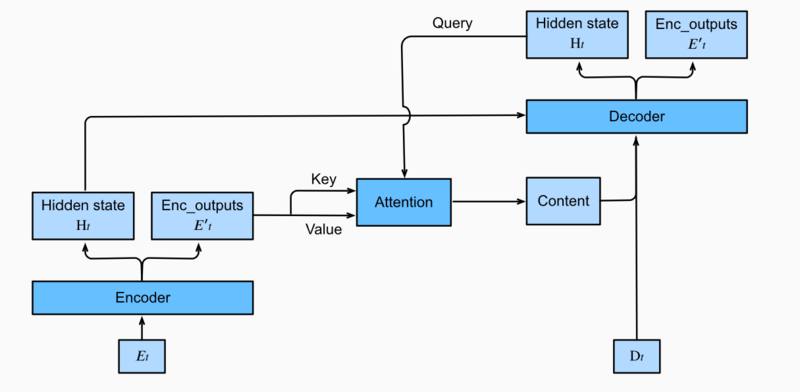

注意力机制和Seq2seq模型

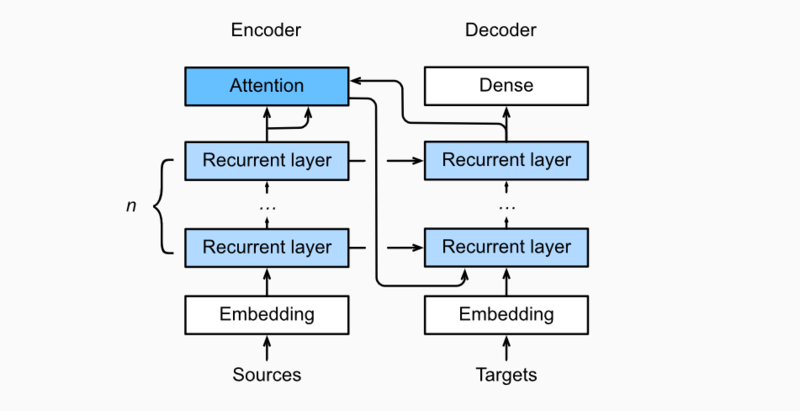

在“编码器—解码器（seq2seq）”⼀节⾥，解码器在各个时间步依赖相同的背景变量（context vector）来获取输⼊序列信息。当编码器为循环神经⽹络时，背景变量来⾃它最终时间步的隐藏状态。将源序列输入信息以循环单位状态编码，然后将其传递给解码器以生成目标序列。然而这种结构存在着问题，尤其是RNN机制实际中存在长程梯度消失的问题，对于较长的句子，我们很难寄希望于将输入的序列转化为定长的向量而保存所有的有效信息，所以随着所需翻译句子的长度的增加，这种结构的效果会显著下降。

与此同时，解码的目标词语可能只与原输入的部分词语有关，而并不是与所有的输入有关。例如，当把“Hello world”翻译成“Bonjour le monde”时，“Hello”映射成“Bonjour”，“world”映射成“monde”。在seq2seq模型中，解码器只能隐式地从编码器的最终状态中选择相应的信息。然而，注意力机制可以将这种选择过程显式地建模。

注意力机制框架

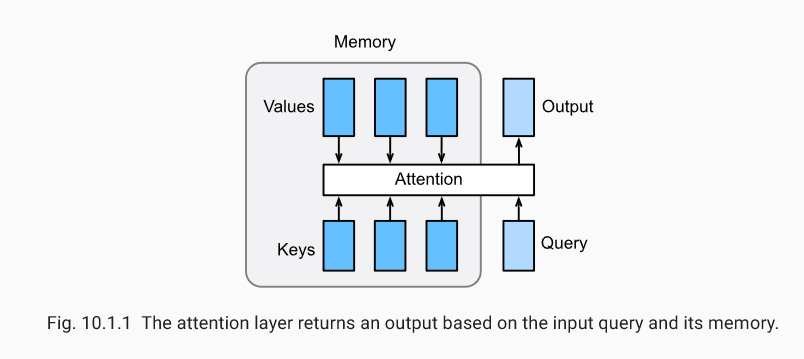

Attention 是一种通用的带权池化方法，输入由两部分构成：询问（query）和键值对（key-value pairs）。 $𝐤_𝑖∈ℝ^{𝑑_𝑘}, 𝐯_𝑖∈ℝ^{𝑑_𝑣}$ . Query $𝐪∈ℝ^{𝑑_𝑞}$ , attention layer得到输出与value的维度一致 $𝐨∈ℝ^{𝑑_𝑣}$ . 对于一个query来说，attention layer 会与每一个key计算注意力分数并进行权重的归一化，输出的向量 $o$ 则是value的加权求和，而每个key计算的权重与value一一对应。

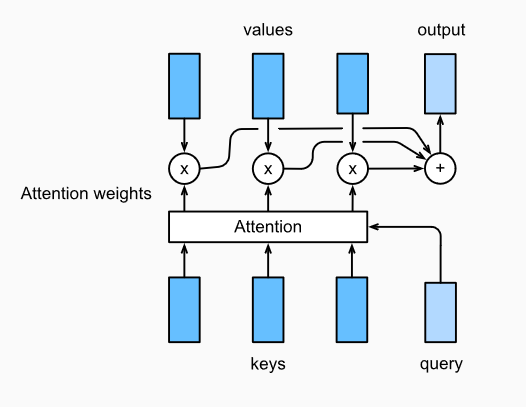

为了计算输出，我们首先假设有一个函数 $\alpha$ 用于计算query和key的相似性，然后可以计算所有的 attention scores $a_1, \ldots, a_n$ by

a_i = \alpha(\mathbf q, \mathbf k_i).

我们使用 softmax函数获得注意力权重：

b_1, \ldots, b_n = \textrm{softmax}(a_1, \ldots, a_n).

最终的输出就是value的加权求和：

\mathbf o = \sum_{i=1}^n b_i \mathbf v_i.

不同的attetion layer的区别在于score函数的选择，在本节的其余部分，我们将讨论两个常用的注意层 Dot-product Attention 和 Multilayer Perceptron Attention；随后我们将实现一个引入attention的seq2seq模型并在英法翻译语料上进行训练与测试。

#注意力机制的实现
import math
import torch
import torch.nn as nn

import os
def file_name_walk(file_dir):
    for root, dirs, files in os.walk(file_dir):
#         print("root", root)  # 当前目录路径
         print("dirs", dirs)  # 当前路径下所有子目录
         print("files", files)  # 当前路径下所有非目录子文件

file_name_walk("/home/kesci/input/fraeng6506")

Softmax屏蔽

在深入研究实现之前，我们首先介绍softmax操作符的一个屏蔽操作。

#屏蔽有效长度之外的字符
def SequenceMask(X, X_len,value=-1e6):
    maxlen = X.size(1)
    #print(X.size(),torch.arange((maxlen),dtype=torch.float)[None, :],'\n',X_len[:, None] )
    mask = torch.arange((maxlen),dtype=torch.float)[None, :] >= X_len[:, None]
    #print(mask)
    X[mask]=value
    return X


def masked_softmax(X, valid_length):
    # X: 3-D tensor, valid_length: 1-D or 2-D tensor
    softmax = nn.Softmax(dim=-1)
    if valid_length is None:
        return softmax(X)
    else:
        shape = X.shape
        if valid_length.dim() == 1:
            try:
                valid_length = torch.FloatTensor(valid_length.numpy().repeat(shape[1], axis=0))#[2,2,3,3]
            except:
                valid_length = torch.FloatTensor(valid_length.cpu().numpy().repeat(shape[1], axis=0))#[2,2,3,3]
        else:
            valid_length = valid_length.reshape((-1,))
        # fill masked elements with a large negative, whose exp is 0
        X = SequenceMask(X.reshape((-1, shape[-1])), valid_length)

        return softmax(X).reshape(shape)

		masked_softmax(torch.rand((2,2,4),dtype=torch.float), torch.FloatTensor([2,3]))

tensor([[[0.5423, 0.4577, 0.0000, 0.0000],
         [0.5290, 0.4710, 0.0000, 0.0000]],

         [[0.2969, 0.2966, 0.4065, 0.0000],
         [0.3607, 0.2203, 0.4190, 0.0000]]])

超出2维矩阵的乘法

$X$ 和 $Y$ 是维度分别为 $(b,n,m)$ 和 $(b, m, k)$ 的张量，进行 $b$ 次二维矩阵乘法后得到 $Z$ , 维度为 $(b, n, k)$ 。

Z[i,:,:] = dot(X[i,:,:], Y[i,:,:])\qquad for\ i= 1,…,n\ .

#矩阵乘法
torch.bmm(torch.ones((2,1,3), dtype = torch.float), torch.ones((2,3,2), dtype = torch.float))

tensor([[[3., 3.]],
        [[3., 3.]]])

点积注意力

The dot product 假设query和keys有相同的维度, 即 $\forall i, 𝐪,𝐤_𝑖 ∈ ℝ_𝑑 $. 通过计算query和key转置的乘积来计算attention score,通常还会除去 $\sqrt{d}$ 减少计算出来的score对维度𝑑的依赖性，如下

\alpha(\mathbf{q}, \mathbf{k})=\langle\mathbf{q}, \mathbf{k}\rangle / \sqrt{d}

假设 $ 𝐐∈ℝ^{𝑚×𝑑}$ 有 $m$ 个query， $𝐊∈ℝ^{𝑛×𝑑}$ 有 $n$ 个keys. 我们可以通过矩阵运算的方式计算所有 $mn$ 个score：

\alpha(\mathbf{Q}, \mathbf{K})=\mathbf{Q} \mathbf{K}^{T} / \sqrt{d}

现在让我们实现这个层，它支持一批查询和键值对。此外，它支持作为正则化随机删除一些注意力权重.

# Save to the d2l package.
class DotProductAttention(nn.Module):
    def __init__(self, dropout, **kwargs):
        super(DotProductAttention, self).__init__(**kwargs)
        self.dropout = nn.Dropout(dropout)

    # query: (batch_size, #queries, d)
    # key: (batch_size, #kv_pairs, d)
    # value: (batch_size, #kv_pairs, dim_v)
    # valid_length: either (batch_size, ) or (batch_size, xx)
    def forward(self, query, key, value, valid_length=None):
        d = query.shape[-1]
        # set transpose_b=True to swap the last two dimensions of key

        scores = torch.bmm(query, key.transpose(1,2)) / math.sqrt(d)
        attention_weights = self.dropout(masked_softmax(scores, valid_length))
        print("attention_weight\n",attention_weights)
        return torch.bmm(attention_weights, value)

测试
现在我们创建了两个批，每个批有一个query和10个key-values对。我们通过valid_length指定，对于第一批，我们只关注前2个键-值对，而对于第二批，我们将检查前6个键-值对。因此，尽管这两个批处理具有相同的查询和键值对，但我们获得的输出是不同的。


atten = DotProductAttention(dropout=0)

keys = torch.ones((2,10,2),dtype=torch.float)
values = torch.arange((40), dtype=torch.float).view(1,10,4).repeat(2,1,1)
atten(torch.ones((2,1,2),dtype=torch.float), keys, values, torch.FloatTensor([2, 6]))

 attention_weight
 tensor([[[0.5000, 0.5000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000,
      0.0000, 0.0000]],
    [[0.1667, 0.1667, 0.1667, 0.1667, 0.1667, 0.1667, 0.0000, 0.0000,
      0.0000, 0.0000]]])
tensor([[[ 2.0000,  3.0000,  4.0000,  5.0000]],
    [[10.0000, 11.0000, 12.0000, 13.0000]]])

多层感知机注意力

在多层感知器中，我们首先将 query and keys 投影到 $ℝ^ℎ$ .为了更具体，我们将可以学习的参数做如下映射
$𝐖_𝑘∈ℝ^{ℎ×𝑑_𝑘}$ , $𝐖_𝑞∈ℝ^{ℎ×𝑑_𝑞}$ , and $𝐯∈ℝ^h$ . 将score函数定义如下：

\alpha(\mathbf{k}, \mathbf{q})=\mathbf{v}^{T} \tanh \left(\mathbf{W}_{k} \mathbf{k}+\mathbf{W}_{q} \mathbf{q}\right)

然后将key 和 value 在特征的维度上合并（concatenate），然后送至 a single hidden layer perceptron 这层中 hidden layer 为 ℎ and 输出的size为 1 .隐层激活函数为tanh，无偏置.

# Save to the d2l package.
class MLPAttention(nn.Module):
    def __init__(self, units,ipt_dim,dropout, **kwargs):
        super(MLPAttention, self).__init__(**kwargs)
        # Use flatten=True to keep query's and key's 3-D shapes.
        self.W_k = nn.Linear(ipt_dim, units, bias=False)
        self.W_q = nn.Linear(ipt_dim, units, bias=False)
        self.v = nn.Linear(units, 1, bias=False)
        self.dropout = nn.Dropout(dropout)

    def forward(self, query, key, value, valid_length):
        query, key = self.W_k(query), self.W_q(key)
        #print("size",query.size(),key.size())
        # expand query to (batch_size, #querys, 1, units), and key to
        # (batch_size, 1, #kv_pairs, units). Then plus them with broadcast.
        features = query.unsqueeze(2) + key.unsqueeze(1)
        #print("features:",features.size())  #--------------开启
        scores = self.v(features).squeeze(-1)
        attention_weights = self.dropout(masked_softmax(scores, valid_length))
        return torch.bmm(attention_weights, value)

测试
尽管MLPAttention包含一个额外的MLP模型，但如果给定相同的输入和相同的键，我们将获得与DotProductAttention相同的输出


atten = MLPAttention(ipt_dim=2,units = 8, dropout=0)
atten(torch.ones((2,1,2), dtype = torch.float), keys, values, torch.FloatTensor([2, 6]))

tensor([[[ 2.0000,  3.0000,  4.0000,  5.0000]],
    [[10.0000, 11.0000, 12.0000, 13.0000]]], grad_fn=<BmmBackward>)

引入注意力机制的Seq2seq模型

本节中将注意机制添加到sequence to sequence 模型中，以显式地使用权重聚合states。下图展示encoding 和decoding的模型结构，在时间步为t的时候。此刻attention layer保存着encodering看到的所有信息——即encoding的每一步输出。在decoding阶段，解码器的 $t$ 时刻的隐藏状态被当作query，encoder的每个时间步的hidden states作为key和value进行attention聚合. Attetion model的输出当作成上下文信息context vector，并与解码器输入 $D_t$ 拼接起来一起送到解码器：

Fig1具有注意机制的seq-to-seq模型解码的第二步

下图展示了seq2seq机制的所以层的关系，下面展示了encoder和decoder的layer结构

Fig2具有注意机制的seq-to-seq模型中层结构


import sys
sys.path.append('/home/kesci/input/d2len9900')
import d2l

解码器
由于带有注意机制的seq2seq的编码器与之前章节中的Seq2SeqEncoder相同，所以在此处我们只关注解码器。我们添加了一个MLP注意层(MLPAttention)，它的隐藏大小与解码器中的LSTM层相同。然后我们通过从编码器传递三个参数来初始化解码器的状态:

the encoder outputs of all timesteps：encoder输出的各个状态，被用于attetion layer的memory部分，有相同的key和values
the hidden state of the encoder’s final timestep：编码器最后一个时间步的隐藏状态，被用于初始化decoder 的hidden state
the encoder valid length: 编码器的有效长度，借此，注意层不会考虑编码器输出中的填充标记（Paddings）

在解码的每个时间步，我们使用解码器的最后一个RNN层的输出作为注意层的query。然后，将注意力模型的输出与输入嵌入向量连接起来，输入到RNN层。虽然RNN层隐藏状态也包含来自解码器的历史信息，但是attentionmodel的输出显式地选择了enc_valid_len以内的编码器输出，这样attention机制就会尽可能排除其他不相关的信息。


class Seq2SeqAttentionDecoder(d2l.Decoder):
    def __init__(self, vocab_size, embed_size, num_hiddens, num_layers,
                 dropout=0, **kwargs):
        super(Seq2SeqAttentionDecoder, self).__init__(**kwargs)
        self.attention_cell = MLPAttention(num_hiddens,num_hiddens, dropout)
        self.embedding = nn.Embedding(vocab_size, embed_size)
        self.rnn = nn.LSTM(embed_size+ num_hiddens,num_hiddens, num_layers, dropout=dropout)
        self.dense = nn.Linear(num_hiddens,vocab_size)

    def init_state(self, enc_outputs, enc_valid_len, *args):
        outputs, hidden_state = enc_outputs
#         print("first:",outputs.size(),hidden_state[0].size(),hidden_state[1].size())
        # Transpose outputs to (batch_size, seq_len, hidden_size)
        return (outputs.permute(1,0,-1), hidden_state, enc_valid_len)
        #outputs.swapaxes(0, 1)

    def forward(self, X, state):
        enc_outputs, hidden_state, enc_valid_len = state
        #("X.size",X.size())
        X = self.embedding(X).transpose(0,1)
#         print("Xembeding.size2",X.size())
        outputs = []
        for l, x in enumerate(X):
#             print(f"\n{l}-th token")
#             print("x.first.size()",x.size())
            # query shape: (batch_size, 1, hidden_size)
            # select hidden state of the last rnn layer as query
            query = hidden_state[0][-1].unsqueeze(1) # np.expand_dims(hidden_state[0][-1], axis=1)
            # context has same shape as query
#             print("query enc_outputs, enc_outputs:\n",query.size(), enc_outputs.size(), enc_outputs.size())
            context = self.attention_cell(query, enc_outputs, enc_outputs, enc_valid_len)
            # Concatenate on the feature dimension
#             print("context.size:",context.size())
            x = torch.cat((context, x.unsqueeze(1)), dim=-1)
            # Reshape x to (1, batch_size, embed_size+hidden_size)
#             print("rnn",x.size(), len(hidden_state))
            out, hidden_state = self.rnn(x.transpose(0,1), hidden_state)
            outputs.append(out)
        outputs = self.dense(torch.cat(outputs, dim=0))
        return outputs.transpose(0, 1), [enc_outputs, hidden_state,
                                        enc_valid_len]

测试


encoder = d2l.Seq2SeqEncoder(vocab_size=10, embed_size=8,
                            num_hiddens=16, num_layers=2)
# encoder.initialize()
decoder = Seq2SeqAttentionDecoder(vocab_size=10, embed_size=8,
                                  num_hiddens=16, num_layers=2)
X = torch.zeros((4, 7),dtype=torch.long)
print("batch size=4\nseq_length=7\nhidden dim=16\nnum_layers=2\n")
print('encoder output size:', encoder(X)[0].size())
print('encoder hidden size:', encoder(X)[1][0].size())
print('encoder memory size:', encoder(X)[1][1].size())
state = decoder.init_state(encoder(X), None)
out, state = decoder(X, state)
out.shape, len(state), state[0].shape, len(state[1]), state[1][0].shape

batch size=4
seq_length=7
hidden dim=16
num_layers=2
encoder output size: torch.Size([7, 4, 16])
encoder hidden size: torch.Size([2, 4, 16])
encoder memory size: torch.Size([2, 4, 16])
(torch.Size([4, 7, 10]), 3, torch.Size([4, 7, 16]), 2, torch.Size([2, 4, 16]))

训练

与第之前节相似，通过应用相同的训练超参数和相同的训练损失来尝试一个简单的娱乐模型。从结果中我们可以看出，由于训练数据集中的序列相对较短，额外的注意层并没有带来显著的改进。由于编码器和解码器的注意层的计算开销，该模型比没有注意的seq2seq模型慢得多。


import zipfile
import torch
import requests
from io import BytesIO
from torch.utils import data
import sys
import collections

class Vocab(object): # This class is saved in d2l.
  def __init__(self, tokens, min_freq=0, use_special_tokens=False):
    # sort by frequency and token
    counter = collections.Counter(tokens)
    token_freqs = sorted(counter.items(), key=lambda x: x[0])
    token_freqs.sort(key=lambda x: x[1], reverse=True)
    if use_special_tokens:
      # padding, begin of sentence, end of sentence, unknown
      self.pad, self.bos, self.eos, self.unk = (0, 1, 2, 3)
      tokens = ['', '', '', '']
    else:
      self.unk = 0
      tokens = ['']
    tokens += [token for token, freq in token_freqs if freq >= min_freq]
    self.idx_to_token = []
    self.token_to_idx = dict()
    for token in tokens:
      self.idx_to_token.append(token)
      self.token_to_idx[token] = len(self.idx_to_token) - 1

  def __len__(self):
    return len(self.idx_to_token)

  def __getitem__(self, tokens):
    if not isinstance(tokens, (list, tuple)):
      return self.token_to_idx.get(tokens, self.unk)
    else:
      return [self.__getitem__(token) for token in tokens]

  def to_tokens(self, indices):
    if not isinstance(indices, (list, tuple)):
      return self.idx_to_token[indices]
    else:
      return [self.idx_to_token[index] for index in indices]

def load_data_nmt(batch_size, max_len, num_examples=1000):
    """Download an NMT dataset, return its vocabulary and data iterator."""
    # Download and preprocess
    def preprocess_raw(text):
        text = text.replace('\u202f', ' ').replace('\xa0', ' ')
        out = ''
        for i, char in enumerate(text.lower()):
            if char in (',', '!', '.') and text[i-1] != ' ':
                out += ' '
            out += char
        return out


    with open('/home/kesci/input/fraeng6506/fra.txt', 'r') as f:
      raw_text = f.read()


    text = preprocess_raw(raw_text)

    # Tokenize
    source, target = [], []
    for i, line in enumerate(text.split('\n')):
        if i >= num_examples:
            break
        parts = line.split('\t')
        if len(parts) >= 2:
            source.append(parts[0].split(' '))
            target.append(parts[1].split(' '))

    # Build vocab
    def build_vocab(tokens):
        tokens = [token for line in tokens for token in line]
        return Vocab(tokens, min_freq=3, use_special_tokens=True)
    src_vocab, tgt_vocab = build_vocab(source), build_vocab(target)

    # Convert to index arrays
    def pad(line, max_len, padding_token):
        if len(line) > max_len:
            return line[:max_len]
        return line + [padding_token] * (max_len - len(line))

    def build_array(lines, vocab, max_len, is_source):
        lines = [vocab[line] for line in lines]
        if not is_source:
            lines = [[vocab.bos] + line + [vocab.eos] for line in lines]
        array = torch.tensor([pad(line, max_len, vocab.pad) for line in lines])
        valid_len = (array != vocab.pad).sum(1)
        return array, valid_len

    src_vocab, tgt_vocab = build_vocab(source), build_vocab(target)
    src_array, src_valid_len = build_array(source, src_vocab, max_len, True)
    tgt_array, tgt_valid_len = build_array(target, tgt_vocab, max_len, False)
    train_data = data.TensorDataset(src_array, src_valid_len, tgt_array, tgt_valid_len)
    train_iter = data.DataLoader(train_data, batch_size, shuffle=True)
    return src_vocab, tgt_vocab, train_iter


embed_size, num_hiddens, num_layers, dropout = 32, 32, 2, 0.0
batch_size, num_steps = 64, 10
lr, num_epochs, ctx = 0.005, 500, d2l.try_gpu()

src_vocab, tgt_vocab, train_iter = load_data_nmt(batch_size, num_steps)
encoder = d2l.Seq2SeqEncoder(
    len(src_vocab), embed_size, num_hiddens, num_layers, dropout)
decoder = Seq2SeqAttentionDecoder(
    len(tgt_vocab), embed_size, num_hiddens, num_layers, dropout)
model = d2l.EncoderDecoder(encoder, decoder)

训练和预测


d2l.train_s2s_ch9(model, train_iter, lr, num_epochs, ctx)

epoch   50,loss 0.104, time 54.7 sec
epoch  100,loss 0.046, time 54.8 sec
epoch  150,loss 0.031, time 54.7 sec
epoch  200,loss 0.027, time 54.3 sec
epoch  250,loss 0.025, time 54.3 sec
epoch  300,loss 0.024, time 54.4 sec
epoch  350,loss 0.024, time 54.4 sec
epoch  400,loss 0.024, time 54.5 sec
epoch  450,loss 0.023, time 54.4 sec
epoch  500,loss 0.023, time 54.7 sec


for sentence in ['Go .', 'Good Night !', "I'm OK .", 'I won !']:
    print(sentence + ' => ' + d2l.predict_s2s_ch9(
        model, sentence, src_vocab, tgt_vocab, num_steps, ctx))

Transformer

在之前的章节中，我们已经介绍了主流的神经网络架构如卷积神经网络（CNNs）和循环神经网络（RNNs）。让我们进行一些回顾：

CNNs 易于并行化，却不适合捕捉变长序列内的依赖关系。
RNNs 适合捕捉长距离变长序列的依赖，但是却难以实现并行化处理序列。

为了整合CNN和RNN的优势，[Vaswani et al., 2017] 创新性地使用注意力机制设计了Transformer模型。该模型利用attention机制实现了并行化捕捉序列依赖，并且同时处理序列的每个位置的tokens，上述优势使得Transformer模型在性能优异的同时大大减少了训练时间。

下图展示了Transformer模型的架构，与之前介绍的seq2seq模型相似，Transformer同样基于编码器-解码器架构，其区别主要在于以下三点：

Transformer blocks：将seq2seq模型重的循环网络替换为了Transformer Blocks，该模块包含一个多头注意力层（Multi-head Attention Layers）以及两个position-wise feed-forward networks（FFN）。对于解码器来说，另一个多头注意力层被用于接受编码器的隐藏状态。
Add and norm：多头注意力层和前馈网络的输出被送到两个“add and norm”层进行处理，该层包含残差结构以及层归一化。
Position encoding：由于自注意力层并没有区分元素的顺序，所以一个位置编码层被用于向序列元素里添加位置信息。

Fig.10.3.1\ Transformer 架构.
